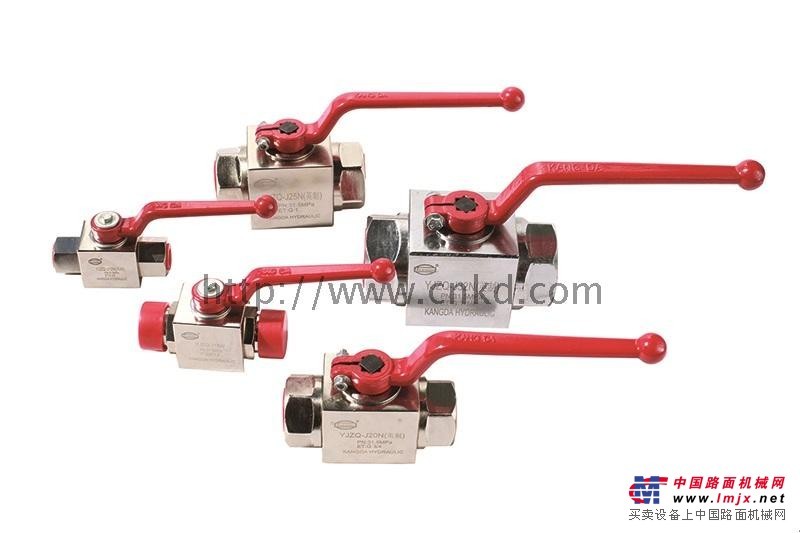

液压高压球阀YJZQ-J10N YJZQ-J10W球形截止阀

液压高压球阀YJZQ-J10N YJZQ-J10W 球形截止阀 内外螺纹高压液压球阀YJZQ-J10N公制M18*1.5英制G3/8外螺纹M27*1.5YJZQ-J15N公制M22*1.5英制G1/2外螺纹M30*1.5YJZQ-J20N公制M27*2英制G3/4外螺纹M36*2YJZQ-J25N公制M33*2英制G1寸外螺纹M42*2YJZQ-J32N公制M42*2英制G1-1/4外螺纹M52*2

<table><tbody><tr>YJZQ系列高压球阀</td></tr><tr>图形符号 技术参数 公称压力：31.5MPa 适用介质：液压油 外形尺寸

内螺纹连接<tbody><tr>型号</td>D1</td>D2</td>G</td>L1</td>L2</td>L3</td>L4</td>H1</td>H2</td>H3</td></tr><tr>YJZQ-J10N</td>Ф10</td>M18×1.5</td>3/8</td>78</td>14</td>105</td>32</td>16</td>36</td>76</td></tr><tr>YJZQ-J15N</td>Ф15</td>M22×1.5</td>1/2</td>86</td>16</td>147</td>38</td>19</td>45</td>80</td></tr><tr>YJZQ-J20N</td>Ф20</td>M27×2</td>3/4</td>108</td>18</td>185</td>48</td>25</td>55</td>101</td></tr><tr>YJZQ-J25N</td>Ф25</td>M33×2</td>1</td>116</td>20</td>185</td>57</td>28.5</td>64</td>111</td></tr><tr>YJZQ-J32N</td>Ф32</td>M42×2</td>1-1/4</td>136</td>22</td>240</td>75</td>37.5</td>84</td>134</td></tr><tr>YJZQ-J40N</td>Ф40</td>M48×2</td>1-1/2</td>148</td>24</td>240</td>85</td>42.5</td>95</td>165</td></tr><tr>YJZQ-J50N</td>Ф50</td>M64×2</td>2</td>180</td>26</td>240</td>104</td>52</td>112.5</td>180</td></tr></tbody></table>

外螺纹连接<tbody><tr>型号</td>D1</td>D2</td>D3</td>L1</td>L2</td>L3</td>L4</td>L5</td>H1</td>H2</td>H3</td></tr><tr>YJZQ- J10W</td>Ф10</td>Ф20</td>M27×1.5</td>94</td>16</td>2</td>105</td>32</td>16</td>36</td>76</td></tr><tr>YJZQ-J15W</td>Ф15</td>Ф22</td>M30×1.5</td>102</td>16</td>2</td>147</td>38</td>19</td>45</td>80</td></tr><tr>YJZQ-J20W</td>Ф20</td>Ф28</td>M36×2</td>124</td>18</td>2.5</td>185</td>48</td>25</td>55</td>101</td></tr><tr>YJZQ-J25W</td>Ф25</td>Ф35</td>M42×2</td>136</td>20</td>2.5</td>185</td>57</td>28.5</td>64</td>111</td></tr><tr>YJZQ-J32W</td>Ф32</td>Ф40</td>M52×2</td>150</td>20</td>2.5</td>240</td>75</td>37.5</td>84</td>134</td></tr><tr>YJZQ-J40W</td>Ф40</td>Ф50</td>M64×2</td>180</td>24</td>2.5</td>240</td>85</td>42.5</td>95</td>165</td></tr><tr>YJZQ-J50W</td>Ф50</td>Ф60</td>M72×2</td>210</td>26</td>2.5</td>240</td>104</td>52</td>112.5</td>180</td></tr></tbody></table></td></tr></tbody></table><h2>

</h2><h2>高压液压球阀阀门名称</h2>
